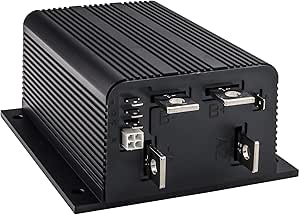

For Curtis 1205M-5601 48V 500A 0-5KΩ Motor Controller Replacement EZGO Golf Cart 1205M-5603 1205-210 1205-211 1205-209 1205-201 Curtis DC SDC Series speed controller

3.2 3.2 out of 5 stars 5 ratings
Want to recycle your product FREE of charge?

Recycle your product

As you consider purchasing of this product, Amazon can help you properly dispose of your old product.

We provide comprehensive information and advice on recycling and disposal regulations available here

Within Germany, we offer a take-back service for eligible items free of charge. Tap to learn more

Currently unavailable.
We don't know when or if this item will be back in stock.
Brand Cotether
Voltage 48 Volts
UPC 739608161676
Manufacturer Cotether

About this item

  • Replacement part number: for Curtis 1205M-5603 / Curtis 1205M-5601 / 1205-210 / 1205-211 / 1205-201 / 1205-209 / P125M-5603 / 1205 EZGO Golf Cart Speed Regulator thoroughly. Tested before shipping, well made according to original products, premium quality.
  • 【Fit】This Golf Cart Controller fits Club Car DS (1996 onwards)
  • 【Features】The replacement of Curtis (1205) 500A, 36-48V long body controller with four bus bars is preset for 0-5KΩ throttle valve. It can be set with a hand curtain programmer #1313-3301 for use with 8 other gas inputs. Many other parameters such as acceleration, HPD, voltage, plug and more are also adjustable.
  • Note: To avoid unnecessary returns, please read your own part and make sure your part is 48V, 500A, 0-5KΩ. By default, the setting of the controller is 48V, 500A, 0-5KΩ. 400A 325A 275A controller is also compatible with this controller.
  • 【1 Year Warranty】: We test each item and are 100% sure that we offer a warranty on damaged products before shipping, before and after sale for a truly worry-free shopping experience.
› See more product details

Product information

Technical Details

Additional Information

Feedback

For Curtis 1205M-5601 48V 500A 0-5KΩ Motor Controller Replacement EZGO Golf Cart 1205M-5603 1205-210 1205-211 1205-209 1205-201 Curtis DC SDC Series speed controller

Found a lower price? Let us know. Although we can't match every price reported, we'll use your feedback to ensure that our prices remain competitive.

Where did you see a lower price?
/
/
/
/
Please sign in to provide feedback.

Product description

Main features: for CURTIS model 1205M.

  • Battery rated voltage (volts): 48V (default) or 36V
  • Compatibility: golf cart controller compatible with club car DS (1996 onwards).
  • 1 minute rated current (amps): 500
  • 5 minutes Rated current (amps): 350
  • 1 hour rated current (amps): 200
  • Plug brake (A2 busbar): yes.
  • PWM operating frequency: 15.6 kHz.
  • Electric insulation to the heat sink (min. ): 500 VAC
  • Logic input current: <2 mA.
  • Status LED output current (max. ): <2 mA.
  • Ambient temperature range: -40°C to 50°C.
  • With these regulators, ten throttle valves can be used:
  • Type 0: 2-wire potentiometer, 0-5kΩ;
    Type 1: 2-wire potentiometer, 5kΩ-0;
    Type 2: single sided 0-5V input;
    Type 3: 2-wire potentiometer, 4.6kΩ-0;
    Type 4: 2-wire potentiometer, 5.5kΩ-0;
    Type 5: 2-wire potentiometer, 1kΩ-0;
    Type 6: ITS input;
    Type 7: single-sided 6.3-10.6V input;
    Type 8: single-sided 6-12V input;
    Type 9: single-sided 3-wire potentiometer, 0-5kΩ

More details:

Battery voltage: 48V (default), 36V

Throttle type: 0-5kΩ (default), 5K-0Ω or 0-5V

Rated current (amps): 500A (compatible with 200A, 300A, 325A or 400A)

If you need to change any controller parameters, you must have a CURTIS #1313-3301 handheld programmer or 1314 PC programming station.

If your motor controller is not 48V/500A/0-5KΩ,

If you are not sure whether the item is compatible with your car,

Please provide us with the picture of your original part.
